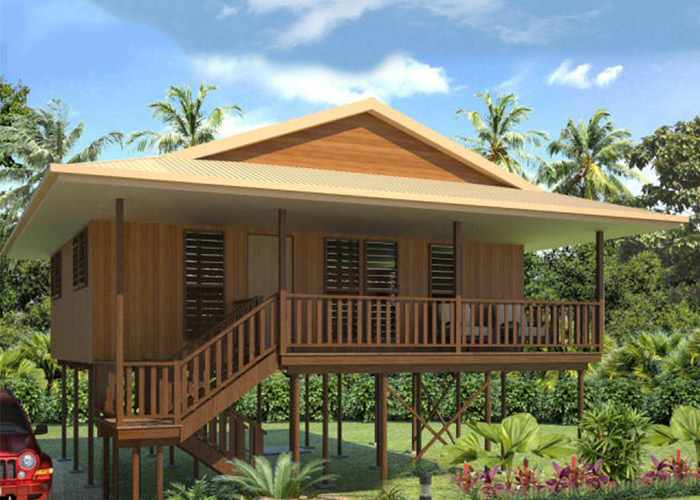

Hot-Sale Prefab Light Steel Structure Holidays Thailand Wooden
House Bungalow With 3 Bedrooms
NO:DP-B-11 Bungalows
Lenth:8540mm
Witdth: 6210nn
Floor:50㎡ Verandah:15㎡
Quick Detail:
Name | Wooden bungalow | Application | Wooden bungalow for holiday living |
Color | Yellow, white, etc depend on the customer’s request | Feature | 1.quickly to assemble on site 2.good earthquake-proof 3.green, energy save 4.design for customers |
|
| Certificate | CE,ISO,SAA,ETC |
Description:

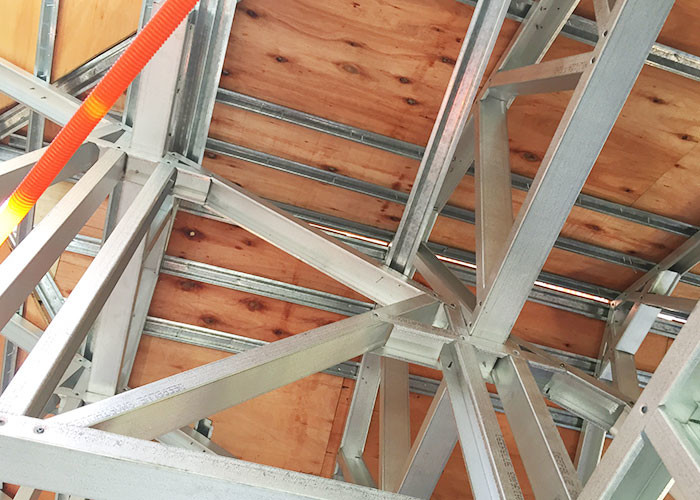

Main structure: Light Gauge Steel
Wall cladding: Fibre cement cladding+MGO board/gypsum board
Insulation material: glass wool or also EPS/XPS/PU sandwich panel
Ceiling material: MGO board/gypsum board
Roof: EPS sandwich panel/steel roofing/asphalt shingle
Flooring: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or wooden door
Window: aluminum alloy/PVC
Other fittings: toilet, washbasin, shower, kitchen, etc.
Life time: 100 years for structure
Applications:
the toilet, washbasin, shower, kitchen, etc.
Specifications
light steel framing Bali prefab wooden houses:
ISO standard light gauge steel for main structure. one or two also three floors
available. fireproof,heat insulation,wind and earthquake
resistance.green,energy save. economically.
Company Information:
Deepblue Smarthouse was founded in 2009, a high-tech enterprise
which integrated the ability of design, production, sales,
transportation, installation and other services as a whole. We
always committed to providing every family with a comfortable, safe
and affordable home, and also can provide one-stop service for
customers in this field. At present, we have completed many
overseas real estate projects, large resort projects and so on. Our
products have been exported to more than 60 countries and NGO. With
59 patents of invention and utility models, we have built more than
5,000 houses and won many awards in design and architecture
Design code:
(1)AISI S100 North American Specification for the Design of Cold
Formed Steel Structural Members published by the American Iron and
Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel
structures jointly published by Standards Australia and Standards
New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code
of practice for design of cold-formed thin gauge sections published
by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part
1.3: General rules, Supplementary rules for cold-formed thin gauge
members.
Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of
the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior
wall
8)Insect prevention: Free from the damages by insects, such as
white ants
9)Ventilation:a combination of natural ventilation or air supply
keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only
and 90SQM/ 40'HQ container for structure with decorate materials.
11)Installation:the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.
Material Configuration:
No. | Item | Materials | Luxury house | No. | Item | Materials | Luxury house |
1 | Foundation | Fixing to Foundation | chemical bolt | 6 | Roof system | roofing | ceramic/asphalt shingle |
cushion tape between frame and foundation | asphalt tape | water-proof layer | the heavy duty asphalt layer |
2 | House Structure System | The main structure for the house | 1.15mm thick *89mm wide Steel frame | strength board | 15mm OSB board |
Floor Joist (if multi-stories) | 1.15mm steel joist | Insulation/batt | heavy duty glass wool |
Connection | self-drilling stress | eaves board | 12mm MgO board |
3 | Exterior Wall | Ext. wall Cladding | 50MM ALC PANEL or PU sandwich panel | downpipe system | PVC downpipe system |
Reinforce layer | 12mm OSB board | 7 | Kitchen and bathroom | Kitchen cabinet | high-quality cabinet |
Vapor barrier | DUPONT Vapor barrier sheet | wall cabinet | high-quality wall cabinet |
Insulation/batt | heavy duty glass wool | counter top | stone counter top |
inter of ext .wall | double 12mm plaster board | Sink | high-quality stainless sink with faucet |
4 | Interior Partition wall | siding | double 12mm plaster board | toilet | high-quality toilet |
cornering | high quality plaster cornering | bathtub | high-quality bathtub |
Skirting | solid wood and tile | shower | high-quality shower |
5 | Floor System | sub floor for ground floor (Wet area ) | NULL | 8 | Doors and windows, plumbing | Exterior door | security door |
Sub floor for another floor ( Wet area ) | 20mm fiber cement board | windows | double glass Alum. Windows |
flooring for gound floor (dry area) | wooden flooring | interior door | high-quality plywood door |
flooring for gound floor ( wet area) | high-quality ceramic tile | hot&cold water pipe | high quality PPR PIPE |
Flooring for another floor (wet area) | high quality ceramic tile | Downpipe | high-quality PVC downpipe |
Flooring for other floors dry area | wooden flooring | 9 | Electrical system and multi media | telephone cable | included |
Insulation | glass wool | TV. CABLE | included |
The ceiling for the dry area | 12mm plaster board | internet cable | included |
the ceiling for wet area | PVC ceiling | electrical cables | included |
stairs (If have) | steel stairs with armrest | lighting | ceiling light |
notice: | distribution box | Included |
1 | EX.W mean EX.works, pls find an explanation from Wikipedia | switch | Included |
2 | This price does not include foundation ,cement works and any other
cost. | 11 | Others | INSTALLATION FEE | Optional |
3 | This price does not include design fee. | SUPERVISOR | Optional |
4 | This price does not include any furniture and others. |
5 | This price is only for listed materials |
6 | All electrical is based on Chinese standard equipment. |
7 | The total window area is no more than 15% of building area. The
ceiling height is calculated 2.5m. |
8 | The final price needs to be confirmed based on final drawings and
order-confirm-letter. |
